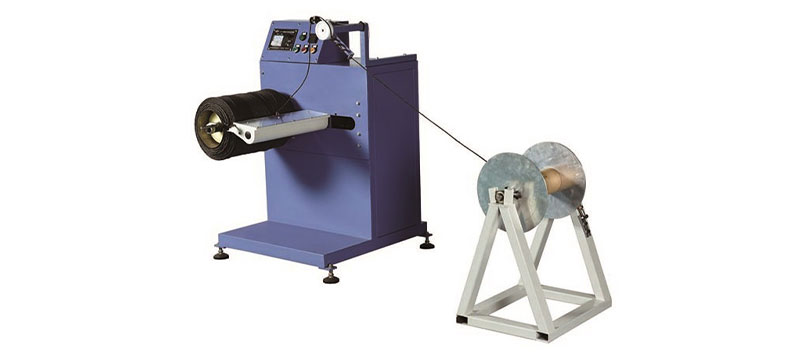

Round Paper Rope Rewinding Machine

Features:

Core Diameter of Raw Rope Roll 76mm
Core Diameter of Final Rope Roll 180mm
Final Rope Reel Diameter 400-500mm
Max. Production Speed 80-150M/min
Power Requirements 380V
Product Description

This round paper rope rewinding machine mainly support twisted paper rope machine. This rewinding machine takes the paper rope roll produced from twisted paper rope machine as the raw material, releases the roll on one shaft and twines it on the other shaft on the machine. This round paper rope rewinding machine can not only enlarge the diameter of the paper rope roll, but also eliminate rope knots in the raw paper rope roll, so that the application efficiency of paper rope roll can be greatly improved in further productions.

Technical Parameters
Core Diameter of Raw Rope Roll 76mm
Core Diameter of Final Rope Roll 180mm
Final Rope Reel Diameter 400-500mm
Max. Production Speed 80-150M/min
Power Requirements 380V
Total Power 2.2KW
TotalWeight Appr.150KG
Overall Dimension L1050mm×W800mm×H1200mm
