Flat Paper Handle Making Machine
Features:

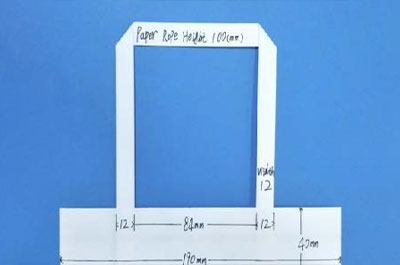

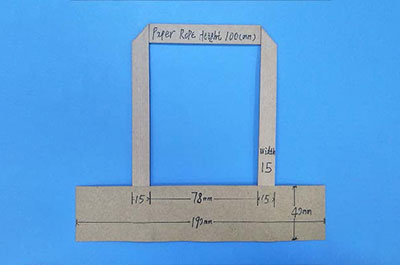

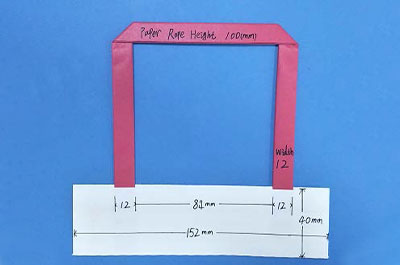

| Handle Spacing (A) | 108mm |
| Paper Rope Width (B) | 12mm/15mm |
| Paper Rope Height (C) | 100mm |
| Paper Width (D) | 40mm |
| Paper Length (E) | 152/190mm |
Features:
| Handle Spacing (A) | 108mm |
| Paper Rope Width (B) | 12mm/15mm |
| Paper Rope Height (C) | 100mm |
| Paper Width (D) | 40mm |
| Paper Length (E) | 152/190mm |

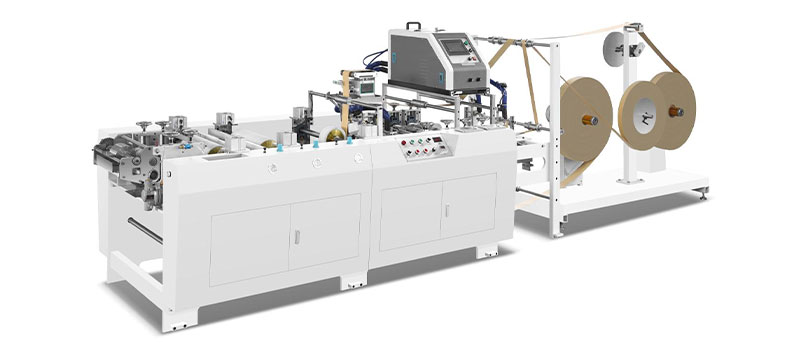

This flat paper handle making machine is a new generation of our newly developed flat rope handle machine, through our continuous research and innovation, the machine can produce 230-300pcs per min, and operate simply. Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping, and can be combined with water glue system and the assembly line can rapidly increase production speed. The flat paper handle making machine is suitable for mass production.
| Handle Spacing (A) | 108mm |  |
| Paper Rope Width (B) | 12mm/15mm | |
| Paper Rope Height (C) | 100mm | |
| Paper Width (D) | 40mm | |
| Paper Length (E) | 152/190mm | |
| Paper Rope Length | 352mm | |
| Paper Gram Weight | 100-120gsm | |
| Production Speed | 6000pairs/h | |
| Power Requirements | 380V | |
| Total Power | 10KW | |
| Total weight | Appr.4000kg | |
| Overall Dimension | L5000*W1500*H1500mm | |
| Glue Type | Hot-melt glue | |
| Name | Original/Brand |
| Melt-glue | Umastec(China) |
| Specifications | Four pipes、four guns |
| Inverter | Rexroth (Doctor of Germany) |
| Mainmotor | Longban |
| Cutter motor | Three phase motor |
