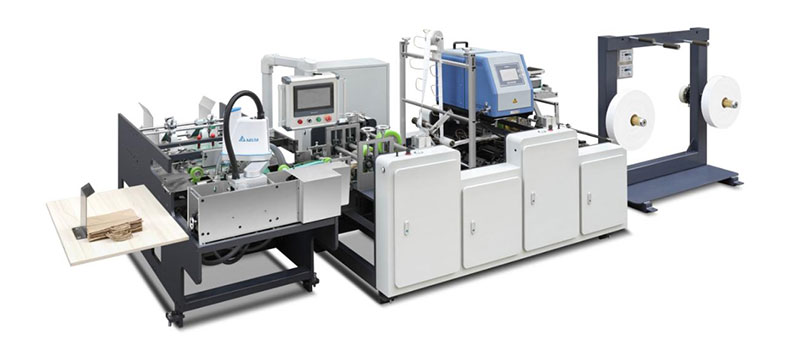

Automatic Round Rope Paper Handle Making And Pasting Machine

Features:

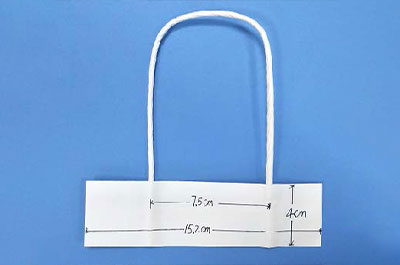

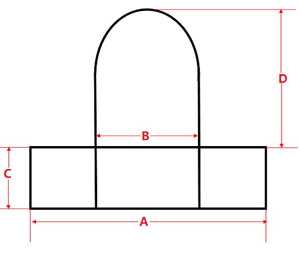

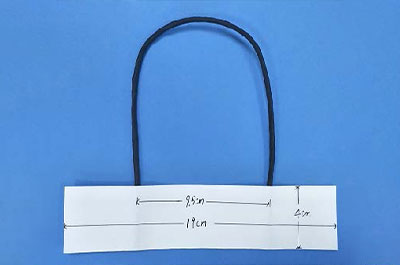

Handle length (A) 152/190mm
Rope spacing (B) 75/95mm
Paper width (C) 30/40mm
Paper rope length 360mm
Paper rope height (C1) 100mm
Product Description
Properties And Uses

This automatic round rope paper handle making and pasting machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This round rope paper handle making and pasting machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Technical Parameters
Handle length (A) 152/190mm
Rope spacing (B) 75/95mm
Paper width (C) 30/40mm
Paper rope length 360mm
Paper rope height (C1) 100mm
Rope diameter Φ2.5~5mm
Bag width 250-400mm
Bag height 250-450mm
Top opening size Over 130mm
Production speed 30-35 pcs/min
Servo motor power 750W
Total power 380V,10KW,50HZ
Overall dimension L6000*W1600*H1500mm





Quality description Configuration picture

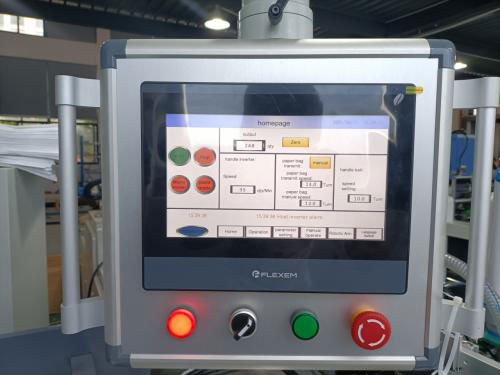

1. Using FLEXEM touch screen man-machine interface control system, operating at a glance.

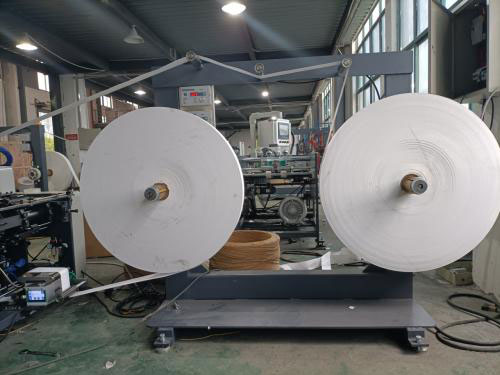

2. double unwinding unit

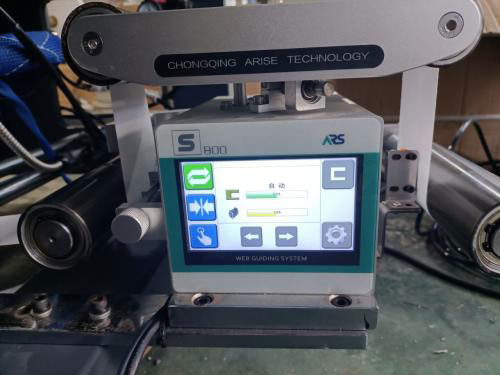

3. use Arise EPC to ensure the handle patch on the right position

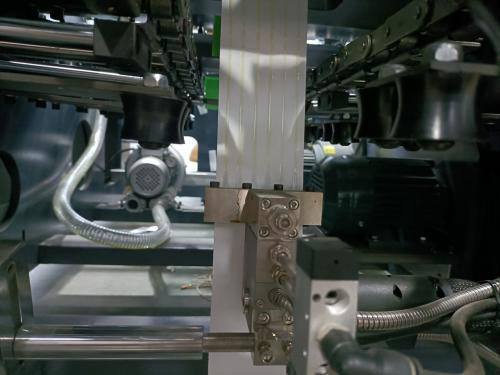

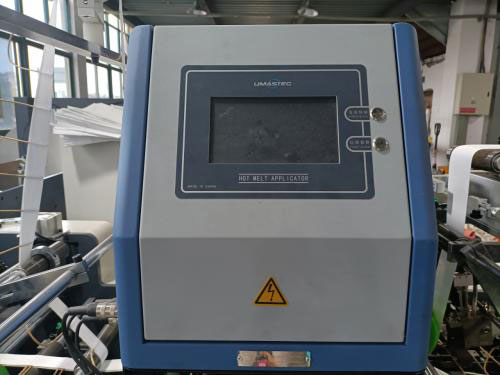

4. high quality hot melt system can reduce the melt cost and defective
5. top brand hot melt system made in taiwan durable and long service life
6. feeder transmit paper bag automatically

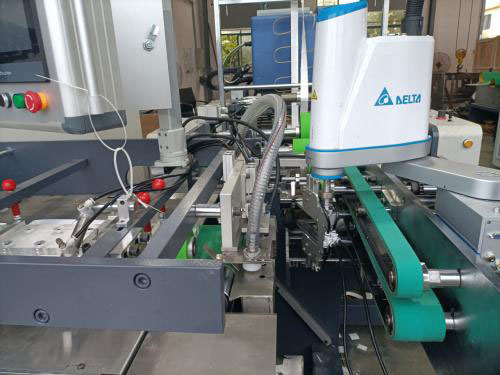

7. Taiwan made DELTA robotic arm durable and long service life

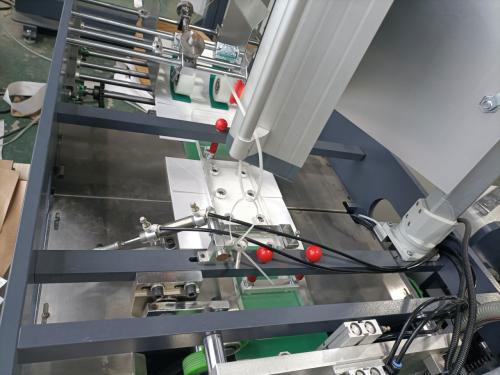

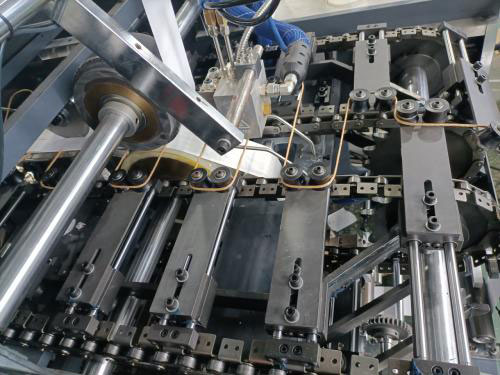

8. Handle making unit

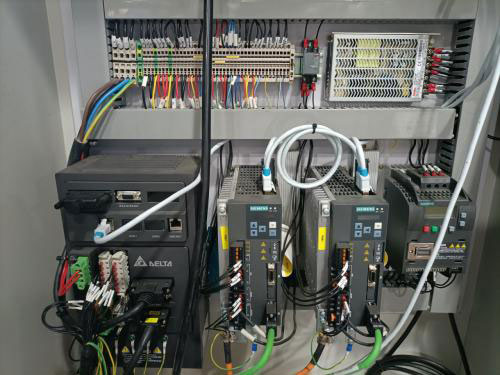

9. Siemens servo driver and inverter
10. Siemens





Main Parts



Motor brand Longbang geared motor (China)
Servo motor brand Siemens (Germany)

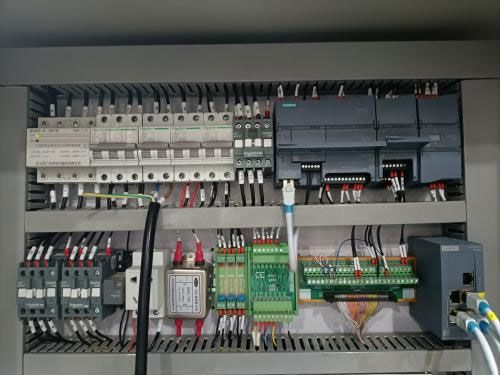

PLC programming brand Siemens (Germany)
Hot melt machine brand Umastec (China)
Mechanical arm Delta (Taiwan)
Applications
