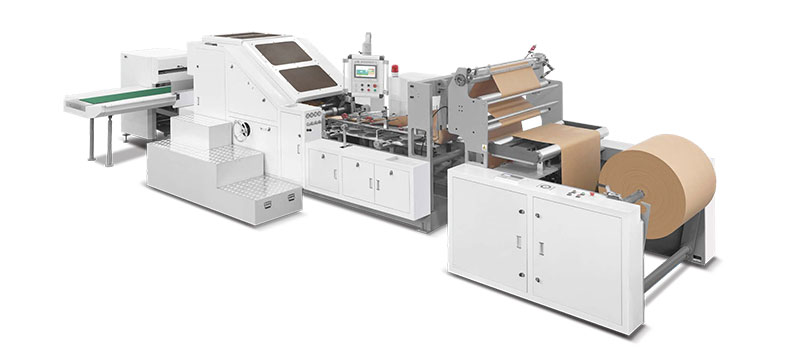

High Speed Square Bottom Paper Bag Machine
Features:

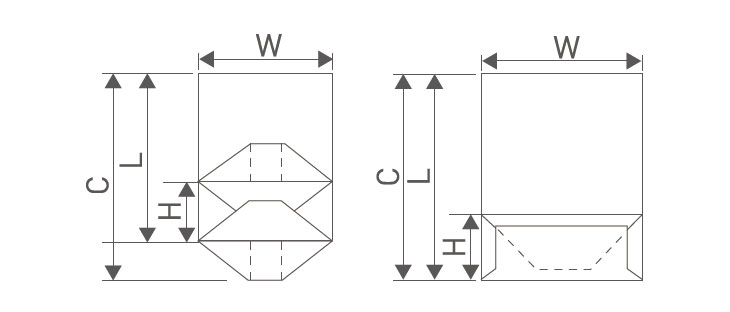

Cutting Length | 190-330mm |
Paper Bag Width | 80-190mm |
Bottom width | 50-105mm |
Paper bag thickness | 50-130g/㎡ |
Paper roll width | 280-640mm |
Features:
Cutting Length | 190-330mm |
Paper Bag Width | 80-190mm |
Bottom width | 50-105mm |
Paper bag thickness | 50-130g/㎡ |
Paper roll width | 280-640mm |

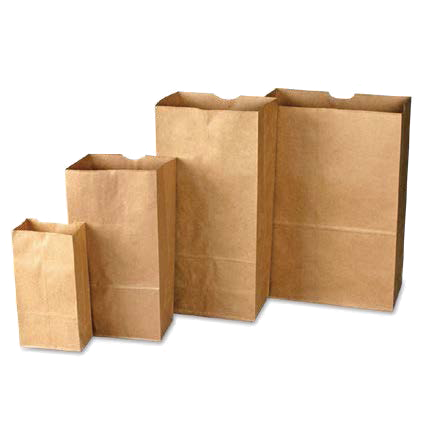

Rolling feed Square bottom paper bag making machine, it uses paper roll in blank or printed asraw material. consists of automatic centre forward glue, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting netime,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and other nvironmentalpaper bags.
1. Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control
2. Adopting Japan original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3. Adopting Japan Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4. The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
5. The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.
Model | XL-FD220 |
Cutting Length | 190-330mm |
Paper Bag Width | 80-190mm |
Bottom width | 50-105mm |
Paper bag thickness | 50-130g/㎡ |
Mechanical speed | 30-260pcs/min |
Paper bag speed | 30-200pcs/min |
Paper roll width | 280-640mm |
Paper diameter | 1300mm |
Inner diameter of paper | 76mm |
Total power | 380V 3phase 4line 11.5kw |
Total Weight | 6000kg |
Overall size | 8500*3500*2200mm |
