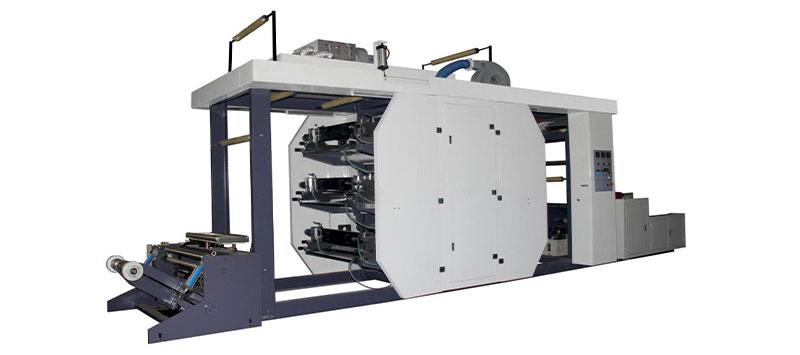

Full Rotary Printing Machine For Flexible Packaging

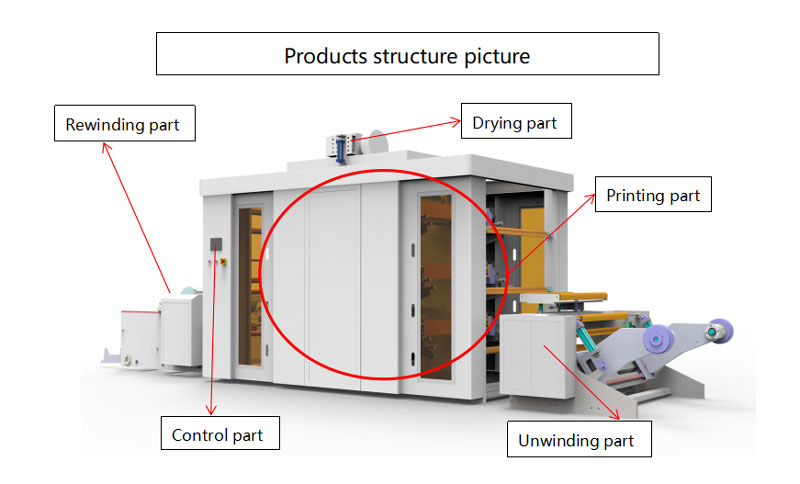

STRUCTURE

1.The machine adopt with synchronous belt drive and hard gear face gear box. The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven(360º adjust the plate) gear driving the press printing roller

After printing, long running material space ,it can make the ink drying easily,better results

CONTROL PART

1. Main motor frequency control, power

2. PLC touch screen control the whole machine

3. Reduce motor separate

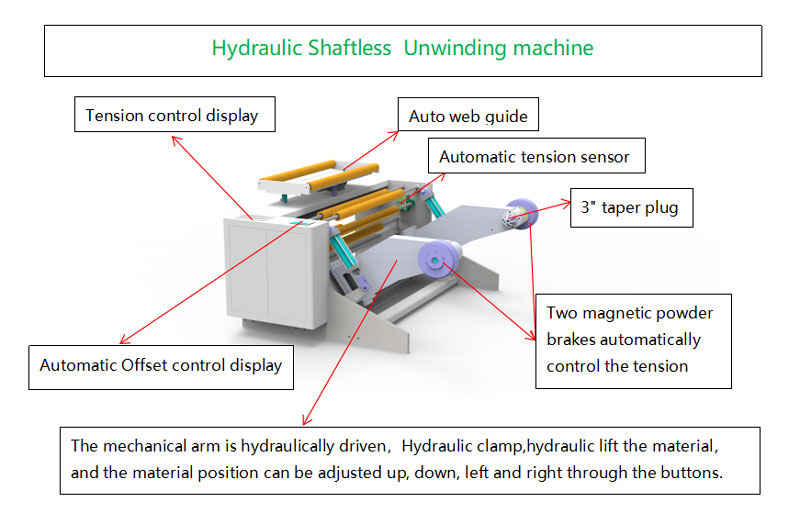

UNWINDING PART

1. Single work station

2. Hydraulic clamp,hydraulic lift the material, hydraulic control the unwinding material width, it can adjust left and right movement.

3. Magnetic powder brake auto tension control.

4. Auto web guide

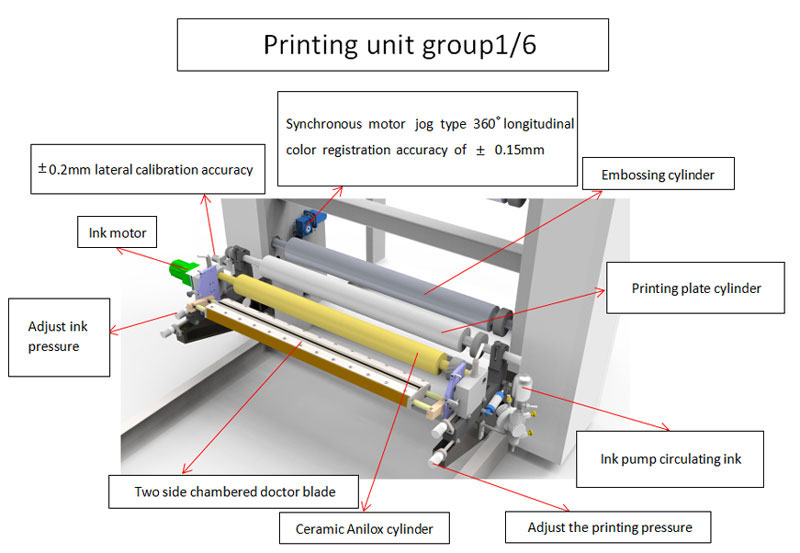

PRINTING PART

1.Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that can run ink automatically. When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.

2.Inking with ceramic anilox chambered doctor blade ,ink pump circulation

3.High precision planetary gear oven 360°circulation longitudinal register

4.±0.20mm transverse register

5.Adjust inking press and printing pressure press by manual

DRYING PART

1. Adopt with external heating pipe, temperature display, electric current control,centrifugal blower bring the wind

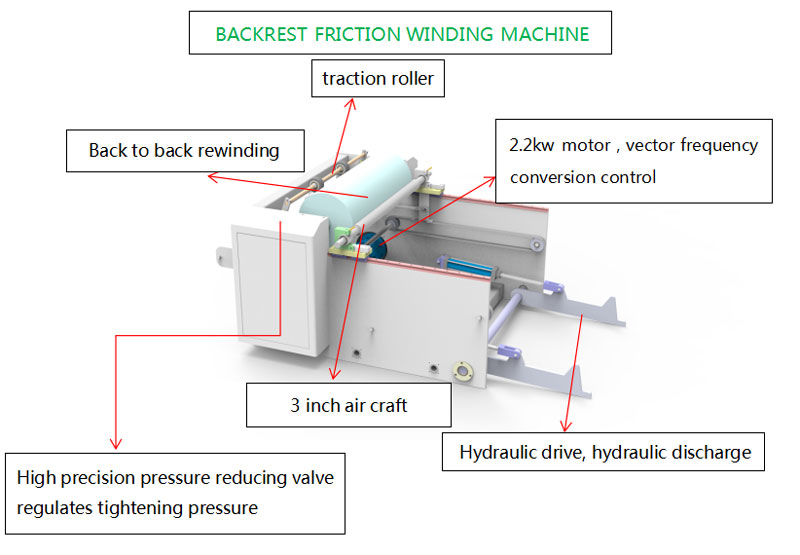

REWINDING PART

1.Back to back rewinding

2.Pneumatic tension control

3.2.2kw motor，vector frequency conversion control

4.3 inch air shaft

5.Hydraulic lowering the material
